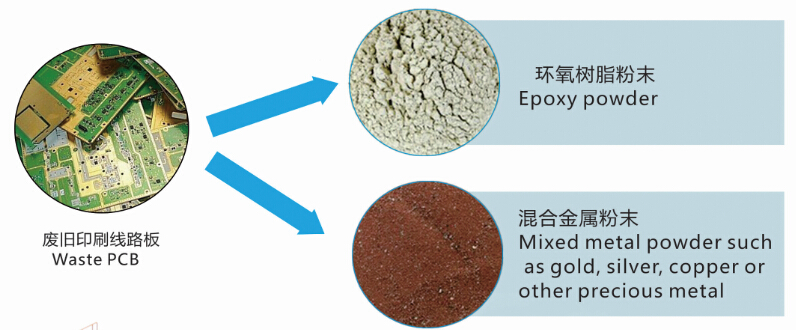

Material and Final products

Technology Process Flow Chart

A typical PCB recycling plant would include the following components:

• Infeed Conveyor Belt – easy and even feeding of the waste materials to the double shaft shredder

• Double shaft shredder – high impact grinding of the shred for size reduction

• Conveyor Belt – transports the shredded fractions from the shredder

• Air filter –removes dust and fines from the system and filters the air before returning it to atmosphere

• Cyclone Separator– separation of solids and liquids

• Metal plastic Separator – separation of metals and plastic

•Electro static separator – separation of Conductors and non conductors, Metal and non metals.

•Vibrating screen–filter the materials

•Hammer crusher–make the more fine size ,special for metal and hard materials

• Eddy Current Separator – separation of non-ferrous metals

•Collecting hopper– collect the final materials

•Integrated Control Panel
